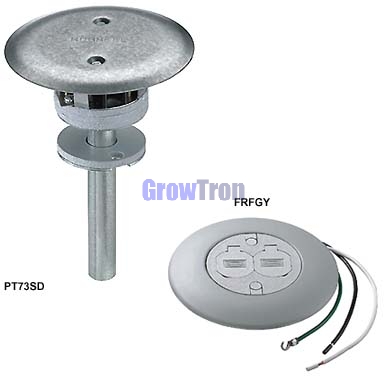

Three-service poke-through fittings
install in a 3 inch (76.2) diameter core drilled hole and will
accommodate a floor thickness range of 2 ¼ - 7 inches (57.2 -
177.8). Includes a ¾" EMT tube for power wiring.
|
| Hubbell Wiring Device-Kellems Product
Specifications |
| Poke-Through Style |
|
| Type |
Furniture Feed Flush |
| Item |
Through-Floor fitting Only
|
| Core Hole Size |
3" |
| Flush Service Type |
3 Service Furniture Feed |
| Fire Rating |
For use in 1, 1 1/2, 2, 3, or 4
hour rated unprotected reinforced concrete floors or in 1, 2, or 3
hour rated floors employing steel floor units and concrete topping
(D900 Series design). |
| UL Installation Spacing |
Minimum of 2 feet O.C. and not
more than one unit per each 65 sq. ft. of floor area in each span.
|
| Cored Hole |
3" (76.2) diameter |
| Power Conduit Tubes
Material |
3/4" EMT |
| Outlet Box UL Listing |
E31999 |
| Fire Resistance UL
Listing |
R8429 |
| Style |
Flush |
|
